Saramonic SR-AX107 2-Channel Active XLR Audio Adaptor from Saramonic
- 2-channel xlr audio adaptor with pre-amplifiers and phantom power, ideal for use with any dslr camera with a built in microphone jack

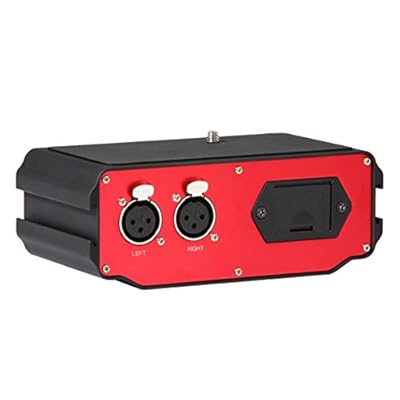

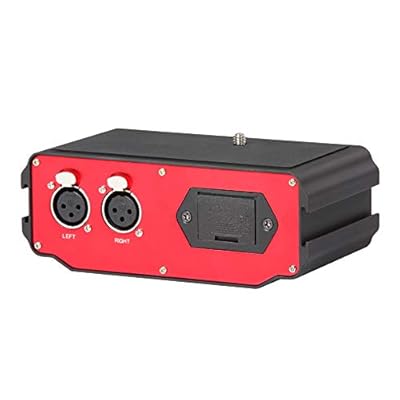

- Two balanced xlr inputs, one monitor input jack. one stereo 3.5mm (1/8") mini-jack output
- Agc dsbl: camera auto gain control will increase the gain to maximum level; the agc disable function reduces the hiss when the camera is recording during quiet moments
- Make sure this fits by entering your model number.
- Isolating transformer which provides noise free sound
- Optional 12 or 48 volt phantom power for condenser microphones that require phantom power to operate.
Product Dimensions : 21 5 x 7 5 x 9 5 cm
Item model number : SR-AX107
Shipping Weight : 839 g
Date First Available : 29 Jun 2015
Item Weight : 200 g
Batteries : 1 9V batteries required
Country Produced In : China
Speaker Amplification Type : active
List Price : £ 209.95Estimated Price : £ 209.95
Estimated Price : £ 209.95
Saramonic SR-AX107 2-Channel Active XLR Audio Adaptor
#Saramonic #SR-AX107 #2-Channel #Active #Audio #Adaptor Product Description The Saramonic SR-AX107 is a 2-Channel XLR audio adaptor with pre-amplifiers and phantom power ideal for use with any DSLR camera with a built in microphone jack A wide variety of audio devices such as professional condenser microphones wireless microphones external audio mixers sound boards etc may be connected to the camera using this adaptor Technical Information Inputs Two balanced XLR inputs One Monitor input jack Output One stereo 3 5mm 1 8 Mini-Jack output Control Knobs Left and Right Control Knobs adjust the signal of each channel to the optimum recording levels Volume control knob adjusts the headphone volume level Mono Stereo Switch select mono or stereo output mode LINE MIC PH Switches Select LINE or MIC or Phantom levels 12V 48V Switch Optional 12 or 48 volt phantom power for condenser microphones that require phantom power to operate Level Meter Indicates the sound level in dB for each channel LED Peak indicators Switch on off the LED signal indicators which flash red for overload Gain Switch Selects LO for unity gain or HI for 20dB boost MONITOR Headphone jack to monitor the audio from microphones or camera AGC On Off switch AGC DSBL Camera Auto Gain Control will increase the gain to maximum level the AGC Disable function reduces the hiss when the camera is recording during quiet moments Isolating transformer which provides noise free sound Operates from 1 x 9V Battery Not included Input Levels -3 dBu 14dBu Output Level Nominal MIC levels Frequency Response 20 Hz to 20 kHz - 0 5 dB THD Less than 0 01 1 kHz -30dBu input S N Ratio 85 dB 1 kHz - 30dBu input Gain dB 20 dB Phantom Power Dual regulated 12 or 48 Volt power supplies Current to 14 mA direct short Level Meter -18 to 3 dB in 3 dB increments Box Contains SR-AX107 main unitsignal transmission line x 1AV cable x 1user manualwarranty card Saramonic, SR-AX107, 2-Channel, Active, Adaptor
